Mini Rotating Cylinder Piston APP Seal Ring | Precision Sealing for Compact Rotary Actuators
Product Overview
The Mini Rotating Cylinder Piston APP Seal Ring is a precision-engineered sealing solution specifically designed for compact rotary actuators and miniature rotating cylinders. This specialized seal maintains excellent sealing performance while accommodating rotational movement and linear motion simultaneously, making it ideal for space-constrained automation applications requiring precise rotational control.
Key Features & Benefits
- Compact Design - Specifically engineered for miniature rotating cylinders with limited installation space
- Rotary-Linear Combined Sealing - Effective sealing under both rotational and linear motions
- Low Friction - Optimized design minimizes rotational torque for smooth operation
- Wear Resistance - Durable materials ensure long service life in continuous rotation applications
- Easy Installation - Precision dimensions for simple assembly in compact spaces
Technical Specifications
| Parameter | Standard Specifications |
| Pressure Range | 0.1 - 1.6 MPa |
| Material | NBR |
| Operating speed | 1M/S |
| Using components | Using components / Pneumatic Finger Cylinder/Rodless Cylinder Piston |
Product Installation Diagram and Specification Sheet
Why Choose Our APP Seal Rings?
Precision Engineering
- Optimized Seal Geometry - Specifically designed for combined rotary-linear motion
- Exact Dimensions - Precision manufacturing ensures perfect fit in compact spaces
- Reduced Friction - Special lip design minimizes rotational resistance
Quality Manufacturing
- Advanced Materials - High-quality rubber compounds for durability
- Consistent Quality - Strict quality control throughout manufacturing process
- Performance Testing - Each batch tested for sealing performance
Technical Support
- Application Engineering - Expert assistance for seal selection
- Custom Solutions - Tailored designs for specific requirements
- Rapid Prototyping - Quick turnaround for custom seal development
Installation Guidelines
- Clean Components - Ensure all surfaces are clean and free from contaminants
- Lubricate Properly - Apply compatible lubricant before installation
- Avoid Sharp Edges - Use installation tools to prevent seal damage
- Correct Orientation - Install with proper seal direction for optimal performance

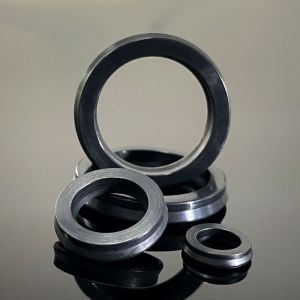

Product Actual Photos
